SpringBoot 文件分片上传

峰峰火火
2023-02-12 / 0 评论 / 0 点赞 / 677 阅读 / 5,162 字 / 正在检测是否收录...
温馨提示:
若内容或图片失效,请留言反馈。部分素材来自网络,若不小心影响到您的利益,请联系我们删除。

前言

  1. 文件上传
    小文件(图片、文档、视频)上传可以直接使用很多ui框架封装的上传组件,或者自己写一个input 上传,利用FormData 对象提交文件数据,后端使用spring提供的MultipartFile进行文件的接收,然后写入即可。但是对于比较大的文件,比如上传2G左右的文件(http上传),就需要将文件分片上传(file.slice()),否则中间http长时间连接可能会断掉。
  2. 分片上传
    分片上传,就是将所要上传的文件,按照一定的大小,将整个文件分隔成多个数据块(我们称之为Part)来进行分别上传,上传完之后再由服务端对所有上传的文件进行汇总整合成原始的文件。
  3. 秒传
    通俗的说,你把要上传的东西上传,通过spark-md5.js转md5,服务器会先做MD5校验,如果服务器上有一样的东西,它就直接给你个新地址,其实你下载的都是服务器上的同一个文件,想要不秒传,其实只要让MD5改变,就是对文件本身做一下修改(改名字不行),例如一个文本文件,你多加几个字,MD5就变了,就不会秒传了.
  4. 断点续传
    断点续传是在下载或上传时,将下载或上传任务(一个文件或一个压缩包)人为的划分为几个部分,每一个部分采用一个线程进行上传或下载,如果碰到网络故障,可以从已经上传或下载的部分开始继续上传或者下载未完成的部分,而没有必要从头开始上传或者下载。

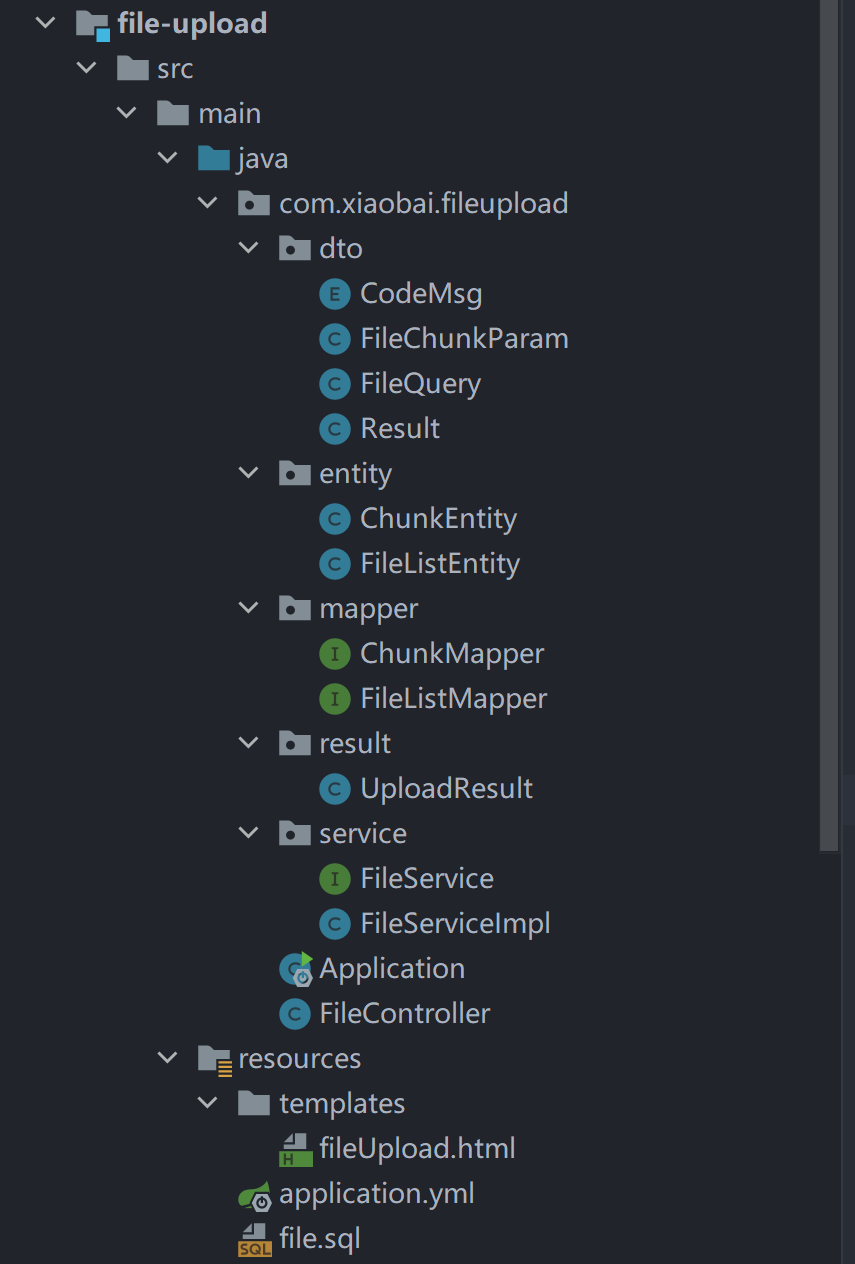

目录结构


主要实现

FileService

package com.xiaobai.fileupload.service;

import com.baomidou.mybatisplus.core.metadata.IPage;
import com.baomidou.mybatisplus.extension.service.IService;
import com.xiaobai.fileupload.dto.FileQuery;
import com.xiaobai.fileupload.entity.ChunkEntity;
import com.xiaobai.fileupload.entity.FileListEntity;
import com.xiaobai.fileupload.result.UploadResult;
import org.springframework.stereotype.Component;

@Component
public interface FileService extends IService<ChunkEntity> {
    boolean uploadChunk(ChunkEntity chunkEntity);
    UploadResult checkChunk(ChunkEntity chunkEntity);
    boolean merge(FileListEntity fileInfo);
    IPage<FileListEntity> selectFileList(FileQuery fileQuery);
}

FileController

package com.xiaobai.fileupload;

import com.baomidou.mybatisplus.core.metadata.IPage;
import com.xiaobai.fileupload.dto.FileQuery;
import com.xiaobai.fileupload.dto.Result;
import com.xiaobai.fileupload.entity.ChunkEntity;
import com.xiaobai.fileupload.entity.FileListEntity;
import com.xiaobai.fileupload.result.UploadResult;
import com.xiaobai.fileupload.service.FileService;
import io.swagger.annotations.ApiOperation;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

@CrossOrigin
@Slf4j
@RequestMapping("file")
@RestController
public class FileController {

    @Autowired
    private FileService fileService;

    /**
     * 上传文件块
     * vue-simple-uploader会调用post方法上传
     */
    @ApiOperation(value = "上传文件块")
    @RequestMapping(value = "/upload", method = RequestMethod.POST)
    public Result<?> uploadChunk(ChunkEntity chunkEntity) {
        log.info("文件名: {}, chunkNumber: {}", chunkEntity.getFilename(), chunkEntity.getChunkNumber());
        boolean flag = fileService.uploadChunk(chunkEntity);
        if(flag){
            return Result.ok();
        }
        return Result.error();
    }

    /**
     * 检查文件块
     * vue-simple-uploader会调用get方法验证
     */
    @ApiOperation(value = "检查文件块")
    @RequestMapping(value = "/upload", method = RequestMethod.GET)
    public Result<?> checkChunk(ChunkEntity chunkEntity) {
        UploadResult result = fileService.checkChunk(chunkEntity);
        try {
            return Result.ok(result);
        } catch (Exception e) {
            e.printStackTrace();
            return Result.ok(result);
        }
    }

    /**
     * 合并文件
     */
    @ApiOperation(value = "合并文件")
    @RequestMapping(value = "/merge", method = RequestMethod.POST)
    public Result<?> merge(@RequestBody FileListEntity fileInfo) {
        boolean flag = fileService.merge(fileInfo);
        if(flag){
            return Result.ok();
        }
        return Result.error();
    }

    /**
     * 查询列表
     */
    @ApiOperation(value = "查询列表")
    @RequestMapping(value = "/selectFileList", method = RequestMethod.POST)
    public Result<?> selectFileList(@RequestBody FileQuery fileQuery) {
        IPage<FileListEntity> ipage = fileService.selectFileList(fileQuery);
        return Result.ok(ipage);
    }

}
package com.xiaobai.fileupload.service;

import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
import com.baomidou.mybatisplus.core.metadata.IPage;
import com.baomidou.mybatisplus.core.toolkit.StringUtils;
import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.xiaobai.fileupload.dto.FileQuery;
import com.xiaobai.fileupload.entity.ChunkEntity;
import com.xiaobai.fileupload.entity.FileListEntity;
import com.xiaobai.fileupload.mapper.ChunkMapper;
import com.xiaobai.fileupload.mapper.FileListMapper;
import com.xiaobai.fileupload.result.UploadResult;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;
import org.springframework.util.CollectionUtils;

import javax.annotation.Resource;
import java.io.IOException;
import java.nio.file.*;
import java.util.List;
import java.util.stream.Collectors;

@Slf4j
@Service
public class FileServiceImpl extends ServiceImpl<ChunkMapper, ChunkEntity> implements FileService {

    private final String filePath = "D:/workpace/upload";

    @Resource
    private FileListMapper fileListMapper;
    /**
     * 上传文件块
     * @param chunkEntity	文件块
     * @return	true成功
     */
    public boolean uploadChunk(ChunkEntity chunkEntity) {
        Path path = Paths.get(generatePath(filePath, chunkEntity));
        try {
            Files.write(path, chunkEntity.getUpfile().getBytes());
            log.debug("文件 {} 写入成功, md5:{}", chunkEntity.getFilename(), chunkEntity.getIdentifier());
            //写入数据库
            this.save(chunkEntity);
        } catch (IOException e) {
            log.error("上传文件块失败: "+e);
            return false;
        }
        return true;
    }

    /**
     * 检查文件块
     * @param chunkEntity	文件块
     * @return
     */
    public UploadResult checkChunk(ChunkEntity chunkEntity) {
        UploadResult result = new UploadResult();

        //查询本地磁盘和数据库记录选一种方式
		/*
			//直接查询本地磁盘
			String file = filePath + "/" + chunkEntity.getIdentifier() + "/" + chunkEntity.getFilename();
	    	//先判断整个文件是否已经上传过了,如果是,则告诉前端跳过上传,实现秒传
	    	if(fileExists(file)) {
	    		result.setSkipUpload(true);
	    		return result;
	    	}
    	*/

        //查询数据库记录
        //先判断整个文件是否已经上传过了,如果是,则告诉前端跳过上传,实现秒传
        QueryWrapper<FileListEntity> fileWrapper = new QueryWrapper<FileListEntity>();
        fileWrapper.lambda().eq(FileListEntity::getDelFlag, 0);
        fileWrapper.lambda().eq(FileListEntity::getIdentifier, chunkEntity.getIdentifier());

        FileListEntity fileListEntity = fileListMapper.selectOne(fileWrapper.last("limit 1"));
        if (fileListEntity != null) {
            result.setSkipUpload(true);
            result.setFileId(fileListEntity.getId());
            return result;
        }

        //如果完整文件不存在,则去数据库判断当前哪些文件块已经上传过了,把结果告诉前端,跳过这些文件块的上传,实现断点续传
        QueryWrapper<ChunkEntity> chunkWrapper = new QueryWrapper<ChunkEntity>();
        chunkWrapper.lambda().eq(ChunkEntity::getIdentifier, chunkEntity.getIdentifier());

        List<ChunkEntity> chunkList = this.list(chunkWrapper);
        //将已存在的块的chunkNumber列表返回给前端,前端会规避掉这些块
        if (!CollectionUtils.isEmpty(chunkList)) {
            List<Integer> collect = chunkList.stream().map(ChunkEntity::getChunkNumber).collect(Collectors.toList());
            result.setUploadedChunks(collect);
        }
        return result;
    }

    @Transactional(rollbackFor = Exception.class)
    public boolean merge(FileListEntity fileInfo) {
        String filename = fileInfo.getFilename();
        String file = filePath  + "/" + fileInfo.getIdentifier() + "/" + filename;
        String folder = filePath  + "/" + fileInfo.getIdentifier();
        boolean flag = mergeFile(file, folder, filename);
        if(!flag){
            return false;
        }

        //当前文件已存在数据库中时,返回已存在标识
        QueryWrapper<FileListEntity> fileWrapper = new QueryWrapper<FileListEntity>();
        fileWrapper.lambda().eq(FileListEntity::getDelFlag, 0);
        fileWrapper.lambda().eq(FileListEntity::getIdentifier, fileInfo.getIdentifier());

        Integer count = fileListMapper.selectCount(fileWrapper);
        if (count <= 0) {
            fileInfo.setLocation(file);
            fileListMapper.insert(fileInfo);
        }

        //插入文件记录成功后,删除chunk表中的对应记录,释放空间
        QueryWrapper<ChunkEntity> chunkWrapper = new QueryWrapper<ChunkEntity>();
        chunkWrapper.lambda().eq(ChunkEntity::getIdentifier, fileInfo.getIdentifier());
        this.remove(chunkWrapper);

        return true;
    }

    /**
     * 查看应用列表
     */
    public IPage<FileListEntity> selectFileList(FileQuery fileQuery) {
        QueryWrapper<FileListEntity> qw = new QueryWrapper<>();
        qw.lambda().eq(FileListEntity::getDelFlag, 0);
        qw.lambda().like(StringUtils.isNotBlank(fileQuery.getName()), FileListEntity::getFilename, fileQuery.getName());
        qw.lambda().orderByDesc(FileListEntity::getCreateTime);
        return fileListMapper.selectPage(new Page<>(fileQuery.getPage(), fileQuery.getLimit()), qw);
    }


    /**
     * 功能描述:生成块文件所在地址
     */
    private String generatePath(String uploadFolder, ChunkEntity chunk) {
        StringBuilder sb = new StringBuilder();
        //文件夹地址/md5
        sb.append(uploadFolder).append("/").append(chunk.getIdentifier());
        //判断uploadFolder/identifier 路径是否存在,不存在则创建
        if (!Files.isWritable(Paths.get(sb.toString()))) {
            log.info("path not exist,create path: {}", sb.toString());
            try {
                Files.createDirectories(Paths.get(sb.toString()));
            } catch (IOException e) {
                log.error(e.getMessage(), e);
            }
        }
        //文件夹地址/md5/文件名-1
        return sb.append("/")
                .append(chunk.getFilename())
                .append("-")
                .append(chunk.getChunkNumber()).toString();
    }

    /**
     * 文件合并
     *
     * @param targetFile 要形成的文件名
     * @param folder     要形成的文件夹地址
     * @param filename   文件的名称
     */
    private boolean mergeFile(String targetFile, String folder, String filename) {
        try {
            //先判断文件是否存在
            if(fileExists(targetFile)) {
                //文件已存在
                return true;
            }

            Files.createFile(Paths.get(targetFile));
            Files.list(Paths.get(folder))
                    .filter(path -> !path.getFileName().toString().equals(filename))
                    .sorted((o1, o2) -> {
                        String p1 = o1.getFileName().toString();
                        String p2 = o2.getFileName().toString();
                        int i1 = p1.lastIndexOf("-");
                        int i2 = p2.lastIndexOf("-");
                        return Integer.valueOf(p2.substring(i2)).compareTo(Integer.valueOf(p1.substring(i1)));
                    })
                    .forEach(path -> {
                        try {
                            //以追加的形式写入文件
                            Files.write(Paths.get(targetFile), Files.readAllBytes(path), StandardOpenOption.APPEND);
                            //合并后删除该块
                            Files.delete(path);
                        } catch (IOException e) {
                            log.error(e.getMessage(), e);
                        }
                    });
        } catch (IOException e) {
            log.error("文件合并失败: ", e);
            return false;
        }
        return true;
    }

    /**
     * 根据文件的全路径名判断文件是否存在
     * @param file
     * @return
     */
    private boolean fileExists(String file) {
        boolean fileExists = false;
        Path path = Paths.get(file);
        fileExists = Files.exists(path, LinkOption.NOFOLLOW_LINKS);
        return fileExists;
    }

}

依赖

  <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.4.2</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-validation</artifactId>
        </dependency>
        <dependency>
            <groupId>io.swagger</groupId>
            <artifactId>swagger-annotations</artifactId>
            <version>1.6.2</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
    </dependencies>

表结构

DROP TABLE IF EXISTS `t_chunk`;
CREATE TABLE `t_chunk`  (
  `id` varchar(64) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL COMMENT '主键ID',
  `chunk_number` int NOT NULL COMMENT '文件块编号,从1开始',
  `chunk_size` bigint NOT NULL COMMENT '分块大小',
  `current_chunk_size` bigint NOT NULL COMMENT '当前分块大小',
  `identifier` varchar(64) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL COMMENT '文件标识MD5',
  `filename` varchar(500) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL COMMENT '文件名',
  `relative_path` varchar(500) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL COMMENT '相对路径',
  `total_chunks` int NOT NULL COMMENT '总块数',
  `total_size` bigint NOT NULL COMMENT '总大小',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci COMMENT = '文件块' ROW_FORMAT = Dynamic;

DROP TABLE IF EXISTS `t_file_list`;
CREATE TABLE `t_file_list`  (
  `id` varchar(64) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL COMMENT '主键ID',
  `filename` varchar(500) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL COMMENT '文件名',
  `identifier` varchar(64) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL COMMENT '唯一标识MD5',
  `total_size` bigint NOT NULL COMMENT '文件总大小',
  `location` varchar(200) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL COMMENT '地址',
  `del_flag` int NOT NULL DEFAULT 0 COMMENT '是否删除: 0.否 1.是',
  `create_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci COMMENT = '文件列表' ROW_FORMAT = Dynamic;

application.yml

server:
  port: 8080

spring:
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    password: 123456
    url: jdbc:mysql://121.37.30.8:3306/file?characterEncoding=UTF-8&useSSL=false
    username: file

  servlet:
    multipart:
      max-file-size: 1000MB
      max-request-size: 1000MB

CodeMsg

package com.xiaobai.fileupload.dto;

public enum CodeMsg {
    SUCCESS(200, "success"),
    SYSTEM_ERROR(520, "fail");
    public Integer code;
    public String msg;

    CodeMsg(int i, String s) {
        this.code = i;
        this.msg = s;
    }

    public Integer getCode() {
        return code;
    }

    public String getMsg() {
        return msg;
    }
}

FileChunkParam

package com.xiaobai.fileupload.dto;

import lombok.Data;
import org.springframework.web.multipart.MultipartFile;

import javax.validation.constraints.NotBlank;
import javax.validation.constraints.NotNull;

@Data
public class FileChunkParam  {
    @NotNull(message = "当前分片不能为空")
    private Integer chunkNumber;

    @NotNull(message = "分片大小不能为空")
    private Float chunkSize;

    @NotNull(message = "当前分片大小不能为空")
    private Float currentChunkSize;

    @NotNull(message = "文件总数不能为空")
    private Integer totalChunks;

    @NotBlank(message = "文件标识不能为空")
    private String identifier;

    @NotBlank(message = "文件名不能为空")
    private String filename;

    private String fileType;

    private String relativePath;

    @NotNull(message = "文件总大小不能为空")
    private Float totalSize;

    private MultipartFile file;
}

FileQuery

package com.xiaobai.fileupload.dto;

import lombok.Data;

@Data
public class FileQuery {
    private String name;
    private int page;
    private int limit;
}

Result

package com.xiaobai.fileupload.dto;
import io.swagger.annotations.ApiModel;
import io.swagger.annotations.ApiModelProperty;
import lombok.Data;

import java.io.Serializable;

/**
 * 接口返回数据格式
 *
 */
@Data
@ApiModel(value = "接口返回对象", description = "接口返回对象")
public class Result<T> implements Serializable {

    private static final long serialVersionUID = 1L;

    /**
     * 成功标志
     */
    @ApiModelProperty(value = "成功标志")
    private boolean success = true;

    /**
     * 返回处理消息
     */
    @ApiModelProperty(value = "返回处理消息")
    private String msg = CodeMsg.SUCCESS.getMsg();

    /**
     * 返回代码
     */
    @ApiModelProperty(value = "返回代码")
    private Integer code = CodeMsg.SUCCESS.getCode();

    /**
     * 返回数据对象 data
     */
    @ApiModelProperty(value = "返回数据对象")
    private Object data;

    /**
     * 时间戳
     */
    @ApiModelProperty(value = "时间戳")
    private long timestamp = System.currentTimeMillis();

    public Result() {

    }

    public Result<T> success(String msg) {
        this.msg = msg;
        this.code = CodeMsg.SUCCESS.getCode();
        this.success = true;
        return this;
    }

    public static Result<Object> ok() {
        Result<Object> r = new Result<Object>();
        r.setSuccess(true);
        r.setCode(CodeMsg.SUCCESS.getCode());
        r.setMsg(CodeMsg.SUCCESS.getMsg());
        return r;
    }

    public static Result<Object> ok(String msg) {
        Result<Object> r = new Result<Object>();
        r.setSuccess(true);
        r.setCode(CodeMsg.SUCCESS.getCode());
        r.setMsg(msg);
        return r;
    }

    public static Result<Object> ok(Object data) {
        Result<Object> r = new Result<Object>();
        r.setSuccess(true);
        r.setCode(CodeMsg.SUCCESS.getCode());
        r.setData(data);
        return r;
    }

    public static Result<Object> error() {
        Result<Object> r = new Result<Object>();
        r.setCode(CodeMsg.SYSTEM_ERROR.getCode());
        r.setMsg(CodeMsg.SYSTEM_ERROR.getMsg());
        r.setSuccess(false);
        return r;
    }

    public static Result<Object> error(String msg) {
        return error(CodeMsg.SYSTEM_ERROR.getCode(), msg);
    }

    public static Result<Object> error(int code, String msg) {
        Result<Object> r = new Result<Object>();
        r.setCode(code);
        r.setMsg(msg);
        r.setSuccess(false);
        return r;
    }

}

ChunkEntity

package com.xiaobai.fileupload.entity;
import org.springframework.web.multipart.MultipartFile;

import com.baomidou.mybatisplus.annotation.TableField;
import com.baomidou.mybatisplus.annotation.TableId;
import com.baomidou.mybatisplus.annotation.TableName;

import io.swagger.annotations.ApiModel;
import io.swagger.annotations.ApiModelProperty;
import lombok.Data;

@TableName("t_chunk")
@Data
@ApiModel(value = "文件块", description = "文件块")
public class ChunkEntity {

    /**
     * 主键ID
     */
    @TableId
    @ApiModelProperty(value = "主键ID")
    private String id;
    /**
     * 文件块编号,从1开始
     */
    @ApiModelProperty(value = "文件块编号,从1开始")
    private Integer chunkNumber;
    /**
     * 每块大小
     */
    @ApiModelProperty(value = "每块大小")
    private Long chunkSize;
    /**
     * 当前分块大小
     */
    @ApiModelProperty(value = "当前分块大小")
    private Long currentChunkSize;
    /**
     * 总大小
     */
    @ApiModelProperty(value = "总大小")
    private Long totalSize;
    /**
     * 文件标识MD5
     */
    @ApiModelProperty(value = "文件标识MD5")
    private String identifier;
    /**
     * 文件名
     */
    @ApiModelProperty(value = "文件名")
    private String filename;
    /**
     * 相对路径
     */
    @ApiModelProperty(value = "相对路径")
    private String relativePath;
    /**
     * 总块数
     */
    @ApiModelProperty(value = "总块数")
    private Integer totalChunks;

    /**
     * 块内容
     */
    @TableField(exist = false)
    @ApiModelProperty(value = "块内容")
    private MultipartFile upfile;

}

FileListEntity

package com.xiaobai.fileupload.entity;

import com.baomidou.mybatisplus.annotation.TableField;
import com.baomidou.mybatisplus.annotation.TableId;
import com.baomidou.mybatisplus.annotation.TableName;
import com.fasterxml.jackson.annotation.JsonFormat;
import io.swagger.annotations.ApiModel;
import io.swagger.annotations.ApiModelProperty;
import lombok.Data;

import java.util.Date;

@TableName("t_file_list")
@Data
@ApiModel(value = "文件对象", description = "文件对象")
public class FileListEntity {

    /**
     * 主键ID
     */
    @TableId
    @ApiModelProperty(value = "主键ID")
    private String id;

    /**
     * 文件名
     */
    @ApiModelProperty(value = "文件名")
    private String filename;

    /**
     * 文件标识MD5
     */
    @ApiModelProperty(value = "文件标识MD5")
    private String identifier;

    /**
     * 总大小
     */
    @ApiModelProperty(value = "总大小")
    private Long totalSize;

    /**
     * 地址
     */
    @ApiModelProperty(value = "地址")
    private String location;

    /**
     * 是否删除: 0.否 1.是
     */
    @ApiModelProperty(value = "是否删除: 0.否 1.是")
    private Integer delFlag;

    /**
     * 创建时间
     */
    @ApiModelProperty(value = "创建时间", hidden = true)
    @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss", timezone = "GMT+8")
    private Date createTime;

    /**
     * 文件大小带单位
     */
    @TableField(exist = false)
    @ApiModelProperty(value = "文件大小带单位")
    private String totalSizeName;

    public void setTotalSize(Long totalSize) {
        this.totalSize = totalSize;
        if(1024*1024 > this.totalSize && this.totalSize >= 1024 ) {
            this.totalSizeName = String.format("%.2f",this.totalSize.doubleValue()/1024) + "KB";
        }else if(1024*1024*1024 > this.totalSize && this.totalSize >= 1024*1024 ) {
            this.totalSizeName = String.format("%.2f",this.totalSize.doubleValue()/(1024*1024)) + "MB";
        }else if(this.totalSize >= 1024*1024*1024 ) {
            this.totalSizeName = String.format("%.2f",this.totalSize.doubleValue()/(1024*1024*1024)) + "GB";
        }else {
            this.totalSizeName = this.totalSize.toString() + "B";
        }
    }

}

ChunkMapper

package com.xiaobai.fileupload.mapper;

import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.xiaobai.fileupload.entity.ChunkEntity;
import org.apache.ibatis.annotations.Mapper;

@Mapper
public interface ChunkMapper extends BaseMapper<ChunkEntity> {
}

FileListMapper

package com.xiaobai.fileupload.mapper;

import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.xiaobai.fileupload.entity.FileListEntity;
import org.apache.ibatis.annotations.Mapper;

@Mapper
public interface FileListMapper extends BaseMapper<FileListEntity> {
}

UploadResult

package com.xiaobai.fileupload.result;

import lombok.Data;

import java.util.List;

@Data
public class UploadResult {
    private boolean skipUpload;
    private String fileId;
    private List<Integer> uploadedChunks;
}

Application

package com.xiaobai.fileupload;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;

@Controller
@SpringBootApplication
public class Application {
    public static void main(String[] args) {
        SpringApplication.run(Application.class, args);
    }

    @RequestMapping("/")
    public String index() {
        return "fileUpload";
    }
}

前端页面 fileUpload

<!DOCTYPE HTML>
<html>
<head>
    <meta charset="utf-8">
    <title>大文件分片上传示例</title>
    <script src="https://cdn.bootcdn.net/ajax/libs/jquery/3.6.3/jquery.js"></script>
    <script src="https://cdn.bootcdn.net/ajax/libs/spark-md5/3.0.2/spark-md5.min.js"></script>
    <script>
        //vari = -1;
        var chunkSize = 5 * 1024 * 1024;    //以5MB为一个分片
        var succeed = 0;
        var currentIndex = 0;
        var shardCount = 0;
        var databgein;  //开始时间
        var dataend;    //结束时间
        var page = {
            init: function () {
                $("#upload").click(function () {
                    //清空
                    $("#usetime").text('');
                    $("#param").text('');
                    $("#output").text('');

                    databgein = new Date();
                    var file = $("#file")[0].files[0];  //文件对象
                    if (file == null) {
                        alert("文件不能为空");
                        return;
                    }
                    computeMD5(file);
                });

                $("#querybut").click(function () {
                    var json = {"page": 1, "limit": 10, "name": ""};
                    //Ajax提交
                    $.ajax({
                        url: "http://localhost:8080/file/selectFileList",
                        type: "POST",
                        data: JSON.stringify(json),
                        dataType: "json",
                        async: true,        //异步
                        contentType: "application/json;charset=utf-8",
                        success: function (data) {
                            $("#filediv").text("");
                            if (data.data.records != null) {
                                $(data.data.records).each(function () {
                                    var tr = $("#filediv").append("<tr></tr>");
                                    tr.append("<td>" + this.identifier + "</td>");
                                    tr.append("<td>" + this.filename + "</td>");
                                    tr.append("<td>" + this.location + "</td>");
                                })
                            }

                        }, error: function (XMLHttpRequest, textStatus, errorThrown) {
                            alert("服务器出错!");
                        }

                    });
                });
            }
        };
        $(function () {
            page.init();
        });

        /**
         * 计算md5,实现断点续传及秒传
         * @param file
         */
        function computeMD5(file) {
            let fileReader = new FileReader();
            let time = new Date().getTime();
            let blobSlice = File.prototype.slice || File.prototype.mozSlice || File.prototype.webkitSlice;
            let currentChunk = 0;
            let chunks = Math.ceil(file.size / chunkSize);
            let spark = new SparkMD5.ArrayBuffer();

            loadNext();

            fileReader.onload = (e => {

                spark.append(e.target.result);

                if (currentChunk < chunks) {
                    currentChunk++;
                    loadNext();
                    // console.log('校验MD5 ' + ((currentChunk / chunks) * 100).toFixed(0) + '%');
                    $("#md5span").text(+((currentChunk / chunks) * 100).toFixed(0) + '%');

                } else {
                    let md5 = spark.end();

                    console.log(`MD5计算完毕:${file.name} \nMD5:${md5} \n分片:${chunks} 大小:${file.size} 用时:${new Date().getTime() - time} ms`);

                    isUpload(file, md5);
                }
            });

            function loadNext() {
                let start = currentChunk * chunkSize;
                let end = ((start + chunkSize) >= file.size) ? file.size : start + chunkSize;

                fileReader.readAsArrayBuffer(blobSlice.call(file, start, end));
            }
        }

        function isUpload(file, md5) {
            //Ajax提交
            $.ajax({
                url: "http://localhost:8080/file/upload?" + "identifier=" + md5,
                type: "GET",
                async: true,        //异步
                processData: false,  //很重要,告诉jquery不要对form进行处理
                contentType: false,  //很重要,指定为false才能形成正确的Content-Type
                success: function (data) {

                    // 服务器分片校验函数,秒传及断点续传基础
                    if (data.data.skipUpload) {
                        dataend = new Date();
                        $("#usetime").text(dataend.getTime() - databgein.getTime());
                        $("#rate").text("100");
                        $("#output").text(shardCount + " / " + shardCount);
                    } else {
                        repeatupload(file, md5, data.data.uploadedChunks);
                    }

                }, error: function (XMLHttpRequest, textStatus, errorThrown) {
                    alert("服务器出错!");
                }

            });


        }

        function repeatupload(file, filemd5, uploadedChunks) {
            size = file.size;        //总大小
            shardCount = Math.ceil(size / chunkSize);  //总片数

            for (var i = 0; i < shardCount; i++) {
                var chunkNumber = i + 1;
                if (uploadedChunks != null && uploadedChunks.indexOf(chunkNumber) >= 0) {
                    console.log(chunkNumber + "分片已存在");
                    //如果分片存在就不用上传了
                    uploadChunks(file.name, filemd5, size);
                    continue;
                }
                upload(file, filemd5, uploadedChunks, chunkNumber);
            }
        }

        /*
         *上传每一分片
         * file 文件对象
         * filemd5 整个文件的md5
         * date  文件第一个分片上传的日期(如:20170122)
         * i  文件第i个分片
         * type  1为检测;2为上传
         */
        function upload(file, filemd5, uploadedChunks, chunkNumber) {
            //计算每一片的起始与结束位置
            var start = (chunkNumber - 1) * chunkSize,
                end = Math.min(size, start + chunkSize);
            //构造一个表单,FormData是HTML5新增的
            var form = new FormData();
            //按大小切割文件段
            var data = file.slice(start, end);

            form.append("chunkNumber", chunkNumber);  //文件块编号,从1开始

            form.append("totalChunks", shardCount);
            form.append("identifier", filemd5);
            form.append("chunkSize", chunkSize);
            form.append("currentChunkSize", data.size);
            form.append("relativePath", file.name);
            form.append("filename", file.name);
            form.append("totalSize", size);
            form.append("total", shardCount);  //总片数
            form.append("upfile", data);

            //Ajax提交
            $.ajax({
                url: "http://localhost:8080/file/upload",
                type: "POST",
                data: form,
                async: true,        //异步
                processData: false,  //很重要,告诉jquery不要对form进行处理
                contentType: false,  //很重要,指定为false才能形成正确的Content-Type
                success: function (data) {
                    uploadChunks(file.name, filemd5, size);

                }, error: function (XMLHttpRequest, textStatus, errorThrown) {
                    alert("服务器出错!");
                }

            });


        }

        function uploadChunks(filename, identifier, totalSize) {
            //服务器返回分片是否上传成功
            ++succeed;//改变界面
            if (succeed > shardCount) {
                succeed = shardCount;
            }

            $("#output").text(succeed + " / " + shardCount);

            if (succeed == shardCount) {
                merge(filename, identifier, totalSize);

                dataend = new Date();
                $("#usetime").text(dataend.getTime() - databgein.getTime());
            }


            //进度
            ++currentIndex;

            if (currentIndex > shardCount) {
                currentIndex = shardCount;
            }
            $("#rate").text(((currentIndex / shardCount) * 100).toFixed(0));
        }

        function merge(filename, identifier, totalSize) {
            var json = {"filename": filename, "identifier": identifier, "totalSize": totalSize};
            //Ajax提交
            $.ajax({
                url: "http://localhost:8080/file/merge",
                type: "POST",
                data: JSON.stringify(json),
                dataType: "json",
                async: true,        //异步
                contentType: "application/json;charset=utf-8",
                success: function (data) {
                    if (data.code != 200) {
                        alert("服务器出错!");
                    }

                }, error: function (XMLHttpRequest, textStatus, errorThrown) {
                    alert("服务器出错!");
                }

            });


        }

    </script>
</head>
<body>

<input id="file" type="file"/>
<button id="upload">上传</button>
<span style="font-size:12px">校验MD5: <span id="md5span"></span></span>
<span style="font-size:12px;margin-left:20px;">等待: <span id="output"></span></span>
<span style="font-size:12px;margin-left:20px;">进度: <span id="rate"></span>%</span>
<span style="font-size:12px;margin-left:20px;">用时: <span id="usetime"></span></span>

<br/>
<br/>
<br/>
<br/>
<button id="querybut">查询</button>
<h2>文件列表</h2>
<table>
    <thead>
    <tr>
        <td>md5</td>
        <td>文件名</td>
        <td>地址</td>
    </tr>
    </thead>
    <tbody id="filediv"></tbody>
</table>


</body>

</html>
0

评论区
